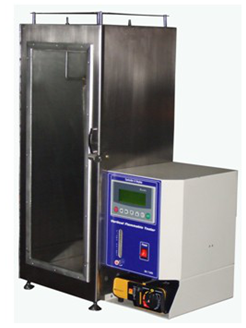

ASTM D6413-99 Vertical Flammability Chamber / Combustion Performance Tester With Steel White Color

HH8333 vertical combustion performance tester

ASTM D6413-99 Vertical combustion performance tester with 20 working experience and steel white color

1.Scope of application:

It is suitable for testing the combustion performance of children's pajamas or decorative fabrics, sealing stainless steel combustion chamber, observation window and standard burner to timely detect the flame spread rate

2.Standard:

Comply with ASTM d6413-99 Standard Test Method for Flame Resistance of Textiles(Vertical Test)

3.Specifications:

sample size: 80mm x 300mm;

1. The power consumed by the mobile motor of the burner :10W
2. Igniter timing :0~99.99 seconds arbitrary setting
3. Reburning time and flame retardant time timer :0~99.99 seconds, accuracy: 0.01 seconds
4. Flame height: adjustable
5. Flame height measuring device :40mm
6. Electric heating wire ignition
7. Burner automatic timing positioning
8. Ignition time 0~99.99 seconds arbitrary setting, reburning time flame retardant time is automatically recorded, digital display
9. The flame height can be adjusted, and the flame temperature measuring device can be configured;
10. "Push-pull" type sample frame fixing device
11. Gas used: methane, propane, butane or liquefied petroleum gas (user-supplied)
12. Power supply :AC220V,50Hz,50W
13. Combustion chamber size :330 340 960(mm)
14. Weight: 45 kg
