High Speed Wire Extrusion Machine For 1.5mm 2.5mm 4mm 6mm 10mm 16mm2 Cable

Dongguan HOOHA Electrical Equipment Company Limited
Contact Now

High Speed Wire Extrusion Machine For 1.5mm 2.5mm 4mm 6mm 10mm 16mm2 Cable

Brand Name : HOOHA

Model Number : HOOHA

Certification : Ios Ce SGS

Place of Origin : China

MOQ : 1

Price : USD+40000-60000

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10/MONTH

Delivery Time : 35 WOEKING DAYS

Packaging Details : WOODEN

Motor : Germany-Siemens

Bearing : Japan-NSK

Available Material : PVC PE LSZH

Certificate : Ios Ce SGS

wire size : 0.5mm2-2.5mm2

Line Speed : 450/Min

Contact Now

High Speed 1.5mm 2.5mm 4mm 6mm 10mm 16mm2 Cable wire extrusion machine

Description:

It's the whole production line of 1-16mm2 cable, from the copper wire extruding to cable collecting.


Producing Process:

1. Extrusion --- 80+35 extrusion machine
2. Collecting --- 630/1250mm collecting machine

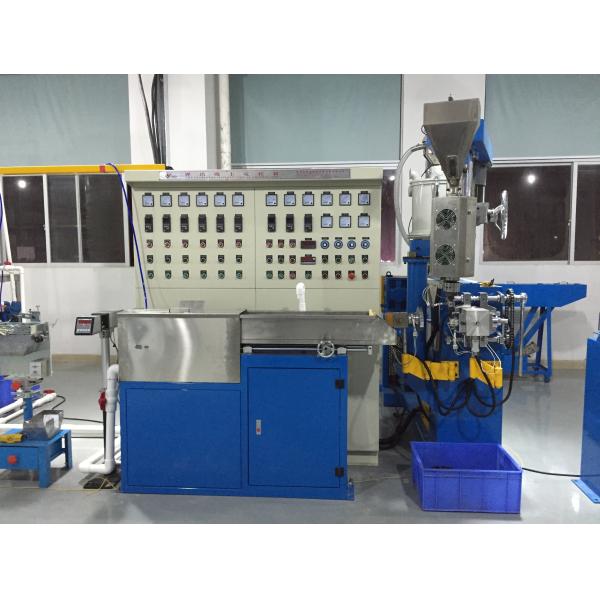

High Speed Wire Extrusion Machine For 1.5mm 2.5mm 4mm 6mm 10mm 16mm2 Cable

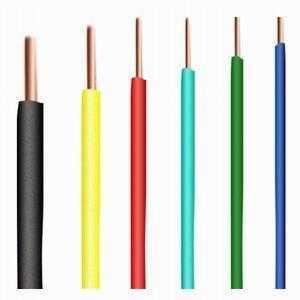

High Speed Wire Extrusion Machine For 1.5mm 2.5mm 4mm 6mm 10mm 16mm2 CableHigh Speed Wire Extrusion Machine For 1.5mm 2.5mm 4mm 6mm 10mm 16mm2 Cable


Feartures
1.High configuration,main electric parts are importing,
2.The screw surface is carbonized and quenched, electroplated with hard cr. ,Gear tooth surface abrasion resistance.
3.big quantity of extrusion,Low energy consumption of the equipment,
4.high production efficiency than other supplier, high gloss surface,
5.small temperature difference good stability,
6.strong continuity of working, convenient operation, long service life.

wire extruder
technical parameters
machine type HH- 65 HH-70 HH-80 HH-90A HH-90B HH-120 HH-150 HH-200
pay-off shaft double-shaft type 800-1600 1000-2000 1600-2500 1600-3150
screw diameter ø65 ø70 ø80 ø90 ø120 ø150 ø200
screw L/D 25:01:00
MAX. extrusion output 130kg/h 150kg/h 200kg/h 250kg/h 280kg/h 400kg/h 650kg/h 900kg/h
motor power 25HP 30HP 40HP 50HP 60HP 70HP 100HP 150HP
wire diameter ø1.2-10mm ø1.5-12mm ø2.0-20mm ø3.0-25mm ø10-40mm ø15-60mm ø30-120mm above ø40mm
cooling device single layer/double layers U type single layer U type
haul-off power 5HP 7.5HP 10HP 15HP 20HP 10HP
MAX. line speed 500m/min 450m/min 400m/min 200m/min 100m/min 60m/min 60m/min
take-up type/power double-shaft bundle packaging ø1000mm-2000mm ø1600mm-2500mm ø1600mm-3150mm ø2000mm-3500mm
